Campus Multifamily Projects¶

The following is a summary of the proposed Revit best practices for PermitZIP multifamily projects that include multiple buildings and phases.

🏗 Revit Model Structure¶

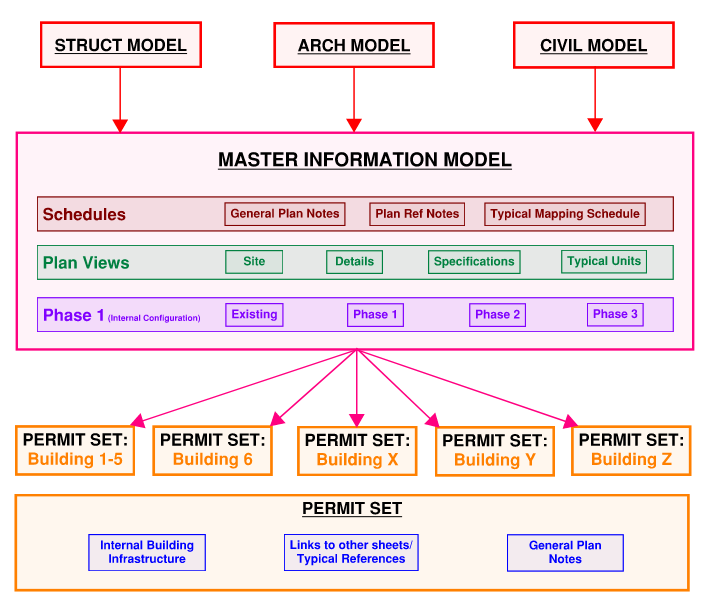

Proposed Complex Revit Model

image by: Vivek Ramdas Plumbing & Mechanical

👵 Master Information - MEP.rvt¶

🦑 Schedules¶

One way to hack the problems with plan notes through linkd modeles is to use model elements instead of annotative families. Choose a category from a discipline which is not include in scope and use it to populate plan note schedules.

General Plan Notes
Plan Reference notes
Typical Mapping Schedule

🪐 Plan Views¶

Site
Details
Specifications
Typical Units
Phases (internal configuration)

🏛️ Building n - MEP.rvt¶

A total of n models, one for or each permit set.

internal building infrastructure
links to other sheets / typical reference
general plan notes
